Shenzhen Hynna Battery Co.,Ltd.
1 Years
| Ask Lasest Price | |
| Brand Name : | OEM LR03 Batteries |
| Model Number : | Lr03 Battery |
| Certification : | CE/REACH/Rohs |
| Price : | bargain |
| Payment Terms : | T/T |
| Supply Ability : | 10000000 per month |
| Delivery Time : | 5-10 working days |
Discharger time 8H (10Ω, 24h/d, 0.9V) ; 2.5H (3.9Ω, 24h/d, 0.9V)

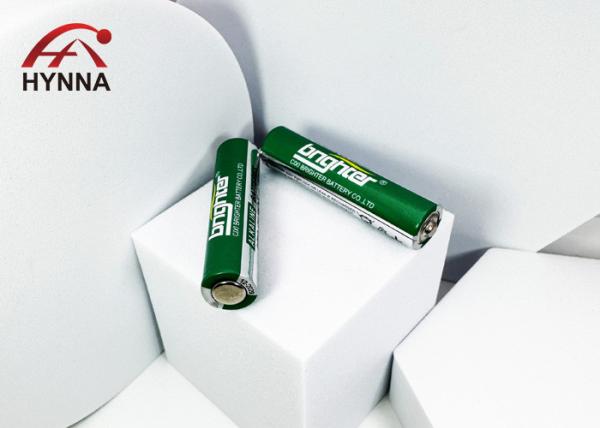

AAA Battery LR03 Alkaline Battery 1.5 Volt Long-Lasting Performance
, Non Rechargeable Batteries
Alkaline Battery LR03 AAA 1.5V AM4
Battery without mercury or cadmium. Long-life with much longer lifespan than conventional batteries.
For cameras, bicycle lights, radio-controlled toys, torches, etc.
Quick Details
Place of Origin: China (Mainland)
Brand Name: OEM
Model Number: LR03
Nominal Capacity: 1300mAh(10mA, 24h/d, 20°c,e.v.=0.8V)
Nominal Voltage: 1.5V
Battery Type: Zn/MnO2
Certification: CE SGS ROSH MSDS REACH
Application: Remote Control
Jacket: Aluminum Foil
Type: Alkaline battery
Package: Shrink wrap/Blister card
Shelf life: 5 Years
If OEM: YES,welcome customizations
Mercury: no
Size: AAA
Data sheet for AAA batteries LR3
| Model | LR03 AAA |
| Diameter | 9.5-10.5 |
| Height | 43.3-44.5 |
| Norminal voltage | 1.5 volt |
| Test condition/discharge time | 10Ω, 24h/d, 0.9V / 8H |
| 3.9Ω, 24h/d, 0.9V/ 2.5H | |
| Storage time | more than 5 years |
| LOGO | OEM |
| Package | Welcome OEM customer logo too |
| Battery pack | any combinations welcome customized |
Dimensions of Battery ( LR03)
Alkalaine battery LR03 AAA battery packing detail
| Type | Blister packing | Shrink packing | ||||||||
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W | |
| LR03/ AAA/ 1.5v | 4B/card | 30 cards | 240 cards | 395*297*214mm | 13.6 kgs | 4S/shrink | 40 pcs | 1200 pcs | 240*230*161mm | 14.3 kgs |
| 2S/shrink | 40 pcs | 1200 pcs | 240*230*161mm | 14.3 kgs | ||||||
Hot sale Alkaline batteries from Hynna
Alkaline Primary battery
| Model | Diameter mm | Height mm | Norminal Voltage V | Test condition | Discharge |
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/七号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h | ||||
| LR6/AA/五号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h | ||||
| LR14/C/二号 | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h | ||||
| LR20/D/大号 | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h | ||||
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
| 270Ω, 1h/d, 5.4V | 1150min | ||||
Alkaline Rechargeable battery
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| HR03/AAA/7号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
| HR6/AA/5号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
USAGE GUIDE (Please refer to lEC60086.5 for detailed safety and
storage specifications.
(1) insert batteries correctly with regard to the polarities
(“+""-") marked on the battery and theelectrical appliances.
(2) Do not short-circuit, recharge, heat, disassemble the battery,
or dispose of in fire.
(3) Do not mix use old batteries with new ones, or mix use
batteries of different types, chemistries orbrands.
(4)Exhausted batteries should be immediately removed from the
equipment.
(5) Keep the batteries away from small children. Do not let the
child remove/replace batterieswithout monitoring from adults.
(6)Storage temperature: 5°C~30°c, and humidity conditions RH:
40%~90%.
Alkaline battery factory
|
|
