| Brand Name : | OEM AAA / LR03 Batteries |
| Model Number : | AM4 Battery LR3 |
| Certification : | CE/REACH/Rohs |
| Price : | bargain |
| Payment Terms : | T/T |
| Supply Ability : | 10000000 per month |
| Delivery Time : | 5-10 working days |
Specification
Part number LR03 battery
Battery type Alkaline battery
Series Dry cell battery
Diameter 9.5-10.5mm
Height 43.3-44.5mm
Voltage 1.5Volt
Discharger time 8H (10Ω, 24h/d, 0.9V) ; 2.5H (3.9Ω, 24h/d, 0.9V)
AAA battery LR03 1.5V EN92
Classified as alkaline, this battery utilizes a Zinc-Manganese
Dioxide (Zn/MnO2) chemical system without added mercury or cadmium.
It carries the ANSI-24A and IEC-LR03 designations, operating at a nominal voltage of 1.5 volts.
With a nominal IR of 150 to 300 milliohms (fresh), this battery performs consistently.
Operating within a temperature range of -18°C to 55°C, it weighs approximately 11.5 grams (0.4 oz.) and has a volume of 3.8 cubic centimeters.
Encased in a plastic label jacket, this battery offers a shelf life of 5 years at 21°C.
Featuring a flat contact terminal, it ensures reliable connections for your devices.
Rely on the Alkaline AAA battery for long-lasting power and performance.
Data sheet for AAA batteries LR3
| Model | LR03 AAA |
| Diameter | 9.5-10.5 |
| Height | 43.3-44.5 |
| Norminal voltage | 1.5 volt |
| Test condition/discharge time | 10Ω, 24h/d, 0.9V / 8H |
| 3.9Ω, 24h/d, 0.9V/ 2.5H | |
| Storage time | more than 5 years |
| LOGO | OEM |
| Package | Welcome OEM customer logo too |
| Battery pack | any combinations welcome customized |
Dimensions of Battery ( LR03)
Alkalaine battery LR03 AAA battery packing detail
| Type | Blister packing | Shrink packing | ||||||||
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W | |
| LR03/ AAA/ 1.5v | 4B/card | 30 cards | 240 cards | 395*297*214mm | 13.6 kgs | 4S/shrink | 40 pcs | 1200 pcs | 240*230*161mm | 14.3 kgs |
| 2S/shrink | 40 pcs | 1200 pcs | 240*230*161mm | 14.3 kgs | ||||||

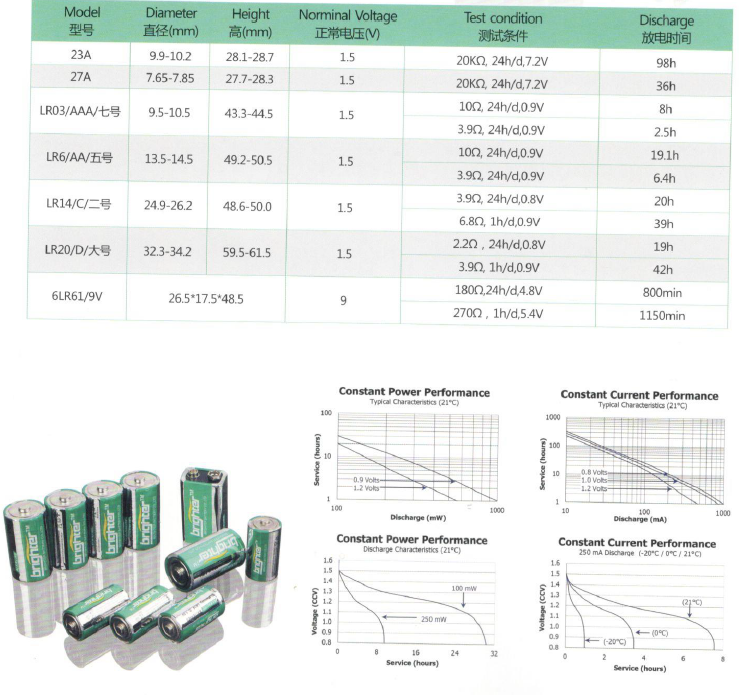

Hot sale Alkaline batteries from Hynna
Alkaline Primary battery
| Model | Diameter mm | Height mm | Norminal Voltage V | Test condition | Discharge |
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/七号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h | ||||
| LR6/AA/五号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h | ||||
| LR14/C/二号 | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h | ||||
| LR20/D/大号 | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h | ||||
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
| 270Ω, 1h/d, 5.4V | 1150min | ||||
Alkaline Rechargeable battery
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| HR03/AAA/7号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
| HR6/AA/5号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
USAGE GUIDE (Please refer to lEC60086.5 for detailed safety and
storage specifications.
(1) insert batteries correctly with regard to the polarities
(“+""-") marked on the battery and theelectrical appliances.
(2) Do not short-circuit, recharge, heat, disassemble the battery,
or dispose of in fire.
(3) Do not mix use old batteries with new ones, or mix use
batteries of different types, chemistries orbrands.
(4)Exhausted batteries should be immediately removed from the
equipment.
(5) Keep the batteries away from small children. Do not let the
child remove/replace batterieswithout monitoring from adults.
(6)Storage temperature: 5°C~30°c, and humidity conditions RH:
40%~90%.
|
|
