Shenzhen Hynna Battery Co.,Ltd.
1 Years
| Ask Lasest Price | |
| Brand Name : | OEm size AAA battery LR03 |
| Model Number : | 1.5 volt battery LR03 |
| Certification : | CE/REACH/Rohs |
| Price : | bargain |
| Payment Terms : | T/T |
| Supply Ability : | 10000000 per month |
| Delivery Time : | 5-10 working days |

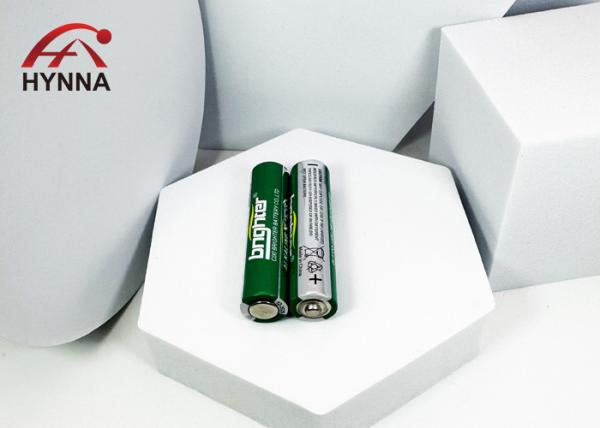

LR03 AAA Alkaline Battery offered by China manufacturer Hynna.
LR03 AAA Alkaline Battery directly with low price and high quality.
About LR03 item
AAA battery has long lasting power and duration, high cost
performance and high performance to meet all your electricity needs
in daily life or work.
Batteries aaa size are designed for use in wireless mouse,
keyboards, clocks, flashlights, toys, remote controls, calculators,
doorbells, massagers, scales, thermometers, door locks and much
more!
The AAA batteries size is 10.5*44.5mm max and has a storage life of
5 years. All Alkaline 1.5V AAA batteries are date coded to ensure
that customers buy batteries with the freshest date.
LR03 alkaline batteries have been held to the strict requirements
of RoHS (Restriction of Hazardous Substances).
It has passed the all encompassing battery testing from performance, dimensions and environmental factors, and will not cause battery leakage.
(WARNING: These are one time use disposable batteries. Please DO
NOT recharge these batteries).
Please rest assured that the purchase .
Please feel free to contact us if you have any problem with the battery after purchase, even if it is caused by non-human factors such as weather and transportation.
Alkaline battery AAA (R3) - The popular small stick, with a nominal voltage of 1.5 V
Specification
Alkaline battery AAA (R3) MN 2400 - a popular small stick.
Model: LR03 battery
Symbols: LR03 / AAA / R03 / MN 2400 / Micro / AM4 / E92
Nominal voltage: 1,5 V
Dimensions:Diameter: 10.5 mm
Height: 44.5 mm
Data sheet for AAA batteries LR3
| Model | LR03 AAA |
| Diameter | 9.5-10.5 |
| Height | 43.3-44.5 |
| Norminal voltage | 1.5 volt |
| Test condition/discharge time | 10Ω, 24h/d, 0.9V / 8H |
| 3.9Ω, 24h/d, 0.9V/ 2.5H | |
| Storage time | more than 5 years |
| LOGO | OEM |
| Package | Welcome OEM customer logo too |
| Battery pack | any combinations welcome customized |
Dimensions of Battery ( LR03)
Attentions:
1) Batteries should be placed in a cool place before use
2) Please install the battery according to the positive and negative (+/-) polarity instructions of the electronic product.
3) Never mix different brands, different types or old and new batteries
4) Never charge, disassemble, damage or dispose of battery in fire
5) Never connect the positive and negative (+/-) terminals of the same battery
6) Never put unpackaged batteries in your pocket
7) If you do not use electronic products for a long time, please remove the batteries
8) Never swallow batteries
9) Batteries are not toys, please do not let children touch or use them
Alkalaine battery LR03 AAA battery packing detail
| Type | Blister packing | Shrink packing | ||||||||
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W | |
| LR03/ AAA/ 1.5v | 4B/card | 30 cards | 240 cards | 395*297*214mm | 13.6 kgs | 4S/shrink | 40 pcs | 1200 pcs | 240*230*161mm | 14.3 kgs |
| 2S/shrink | 40 pcs | 1200 pcs | 240*230*161mm | 14.3 kgs | ||||||
Hot sale Alkaline batteries from Hynna
Alkaline Primary battery
| Model | Diameter mm | Height mm | Norminal Voltage V | Test condition | Discharge |
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/七号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h | ||||
| LR6/AA/五号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h | ||||
| LR14/C/二号 | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h | ||||
| LR20/D/大号 | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h | ||||
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
| 270Ω, 1h/d, 5.4V | 1150min | ||||
Alkaline Rechargeable battery
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| HR03/AAA/7号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
| HR6/AA/5号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
|
|
