Shenzhen Hynna Battery Co.,Ltd.
1 Years
| Ask Lasest Price | |
| Brand Name : | Customization Alkaline battery AAA |
| Model Number : | AAA alkaline battery 1.5v |
| Certification : | CE/REACH/Rohs |
| Price : | bargain |
| Payment Terms : | T/T |
| Supply Ability : | 10000000 per month |
| Delivery Time : | 5-10 working days |
Main materials: manganese dioxide, graphite, zinc
Alkaline battery Advantages
1) Lead-free and mercury-free environmentally friendly design, safer to use
2) Long-lasting storage, anti-leakage technology, not easily broken under pressure
3) New strength electrolyte formula, the power exceeds the national standard limit by more than 30%
Size AAA battery Usage instructions
Please install the battery according to the positive and negative (+/-) polarity instructions of the electronic product.
Alkaline battery AAA (R3) - The popular small stick, with a nominal voltage of 1.5 V
Specification
Alkaline battery AAA (R3) MN 2400 - a popular small stick.
Model: LR03 battery
Symbols: LR03 / AAA / R03 / MN 2400 / Micro / AM4 / E92
Nominal voltage: 1,5 V
Dimensions:Diameter: 10.5 mm
Height: 44.5 mm
FAQ:
Q1: How do we place an order?
A1: Please kindly send us an email for the specifed item, model and
quantity.
Q2: How do we make the payment?
A2: We accept TT, LC, credit card and online order, Please do only
pay to the official account.
Q3: What's the delivery time?
A3: For standard Jacket Battery, the delivery time is normally 3-7
working days after payment.
For Other Battery, the delivery time is about 20 working days after
payment.
Q4: Is it the battery belongs to dangerous goods?
A4: No, it is non-dangerous goods, we have IEC & MSDS documents
for identification.
Data sheet for AAA batteries LR3
| Model | LR03 AAA |
| Diameter | 9.5-10.5 |
| Height | 43.3-44.5 |
| Norminal voltage | 1.5 volt |
| Test condition/discharge time | 10Ω, 24h/d, 0.9V / 8H |
| 3.9Ω, 24h/d, 0.9V/ 2.5H | |
| Storage time | more than 5 years |
| LOGO | OEM |
| Package | Welcome OEM customer logo too |
| Battery pack | any combinations welcome customized |
Dimensions of Battery ( LR03)
Alkalaine battery LR03 AAA battery packing detail
| Type | Blister packing | Shrink packing | ||||||||
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W | |
| LR03/ AAA/ 1.5v | 4B/card | 30 cards | 240 cards | 395*297*214mm | 13.6 kgs | 4S/shrink | 40 pcs | 1200 pcs | 240*230*161mm | 14.3 kgs |
| 2S/shrink | 40 pcs | 1200 pcs | 240*230*161mm | 14.3 kgs | ||||||
Hot sale Alkaline batteries from Hynna
Alkaline Primary battery
| Model | Diameter mm | Height mm | Norminal Voltage V | Test condition | Discharge |
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/七号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h | ||||
| LR6/AA/五号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h | ||||
| LR14/C/二号 | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h | ||||
| LR20/D/大号 | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h | ||||
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
| 270Ω, 1h/d, 5.4V | 1150min | ||||
Alkaline Rechargeable battery
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| HR03/AAA/7号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
| HR6/AA/5号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
USAGE GUIDE (Please refer to lEC60086.5 for detailed safety and
storage specifications.
(1) insert batteries correctly with regard to the polarities
(“+""-") marked on the battery and theelectrical appliances.
(2) Do not short-circuit, recharge, heat, disassemble the battery,
or dispose of in fire.
(3) Do not mix use old batteries with new ones, or mix use
batteries of different types, chemistries orbrands.
(4)Exhausted batteries should be immediately removed from the
equipment.
(5) Keep the batteries away from small children. Do not let the
child remove/replace batterieswithout monitoring from adults.
(6)Storage temperature: 5°C~30°c, and humidity conditions RH:
40%~90%.

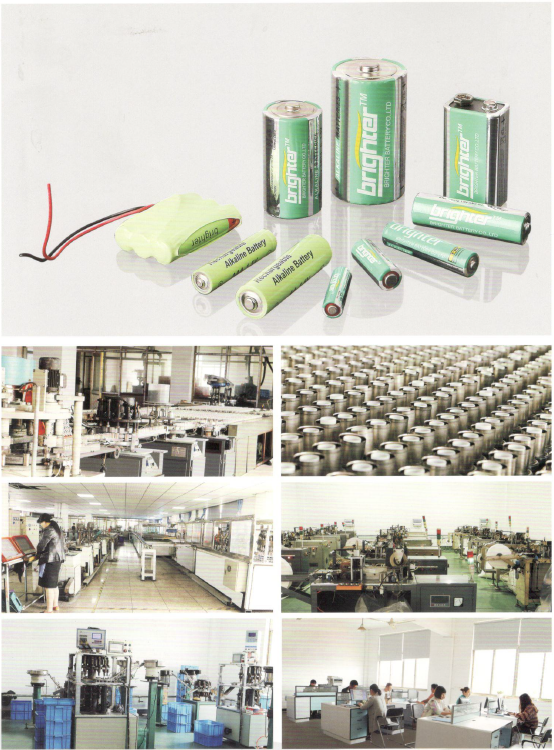

Alkaline battery factory
|
|
