Brand Name : | Battery Alkaline 9v 6lr61 |
Model Number : | Non-Rechargeable Battery 6lr61 Battery |
Certification : | CE/REACH/Rohs |
Price : | bargain |
Payment Terms : | T/T |
Supply Ability : | 10000000 per month |
Delivery Time : | 5-10 working days |
9V Alkaline Batteries for All Devices 9 Volt Battery 6LR61 battery 6F22 9V size Battery
Alkaline Manganese (Mercury free) battery size: IEC: 6LR61; JIS: 6AM6; ANSI: E; MN1604; 9V-Block chemical system: Zn / KOH-H2O / MnO2.
Alkaline-Manganese Dioxide Battery MN1604 9V (6LR61). Alkaline-Manganese Dioxide Battery.
The alkaline batteries save working properties longer, possess bigger capacity, life time and operating temperature range compared with the heavy duty.
6LR61 9V Plus Power long-life alkaline battery excellent for powering your device.
Battery Alkaline 9v 6lr61 Alkaline high power non-rechargeable 6lr61 9v battery
Alkaline 6LR61 9V Primary Batteries 9V PP3 6LR61 Alkaline Battery is perfect for essential business equipment and household devices.
9V alkaline battery with a high energy output that is reliable, with a long shelf life and good low temperature performance.
9V Super Alkaline Battery 6LR61 Premium quality 9V alkaline battery
Provides reliable power to a wide range of devices
0% mercury, cadmium & lead
Suitable for smoke alarms, radio controls, portable radios,
multimeters, metal detectors and other similar devices.Replaces 9V,
6LR61 & PP3
6LR61 alkaline 9V battery 6LR61 9V Battery. Recommended replacement
battery for all Lifeline Electrical Fire Suppression Systems.
Equivalent to: LAP6, M9V/SHD, MN1604, L522, 216, 6F22, K9V, BA3090/U, 1604, 1604A, 1604LC, 006PN, AM6F, A1604, 6F22SB, 6LR61, RF22UB, U9VL, U9VLJ, 5522, U9VL-FP, PP3, PP3HP, 006P, 6LF62, 9 VOLT, HP3
Chemistry: Alkaline.
IEC Name: 6LR61.
Size: 9V.
Voltage 9V
Weight, 45.3 g.
Dimensions,26.5*17.5*48.5 mm.
Blister 1
High Power Battery Alkaline 6LR61 9V Battery IEC format type C 9V
(6F22/6LR61) 9V alkaline battery type 6LR61.
9V long-life alkaline batteries.
Alkaline batteries Attentions:
>1) >Batteries should be placed in a cool place before use
>2) >Please install the battery according to the positive and negative (+/-) polarity instructions of the electronic product.
>3) >Never mix different brands, different types or old and new batteries
>4) >Never charge, disassemble, damage or dispose of battery in fire
>5) >Never connect the positive and negative (+/-) terminals of the same battery
>6) >Never put unpackaged batteries in your pocket
>7) >If you do not use electronic products for a long time, please remove the batteries
>8) >Never swallow batteries
>9) >Batteries are not toys, please do not let children touch or use them
Data sheet for battery 9V 6LR61 battery
Model | 6LR61, 9V |
Dimensions | 26.5*17.5*48.5 mm |
Weight | 45g |
Norminal voltage | 9 volt |
Test condition/discharge time | 180Ω, 24h/d, 4.8V / 800min |
270Ω, 1h/d, 5.4V / 1150min | |
Storage time | more than 5 years |
LOGO | OEM |
Package | Welcome OEM customer logo too |
Battery pack | any combinations welcome customized |

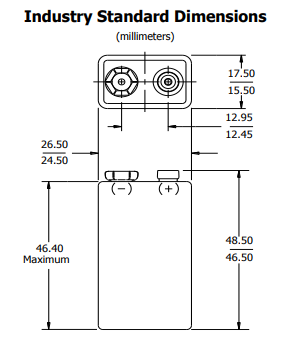

9Volt battery 6LR61 alkaline battery drawing
Hot sale Alkaline batteries from Hynna
Primary cell 1.5 volt batteries
Model | Diameter mm | Height mm | Norminal Voltage V | Test condition | Discharge |
23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
LR03/AAA/七号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
3.9Ω, 24h/d, 0.9V | 2.5h | ||||
LR6/AA/五号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
3.9Ω, 24h/d, 0.9V | 6.4h | ||||
LR14/C/二号 | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
6.8Ω, 1h/d, 0.9V | 39h | ||||
LR20/D/大号 | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
3.9Ω, 1h/d, 0.9V | 42h | ||||
6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
270Ω, 1h/d, 5.4V | 1150min |
Rechargeable Alkaline battery 1.5 volt
Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
HR03/AAA/7号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
HR6/AA/5号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
STORAGE
(1) Store in cool, dry place before use.
(2) Do not keep batteries at temperature of 55℃ or above.
(3) Do not keep batteries at relative humidity of 85% or above.
![]() |
