Shenzhen Hynna Battery Co.,Ltd.
1 Years
| Ask Lasest Price | |
| Brand Name : | Power AA 1.5 Volts Batteries |
| Model Number : | Battery LR6 |
| Certification : | CE/REACH/Rohs |
| Price : | bargain |
| Payment Terms : | T/T |
| Supply Ability : | 10000000 per month |
| Delivery Time : | 5-10 working days |
OEM small cylindrical cell battery size AA alkaline battery 1.5 volt eBook & GPS Batteries
AA and AAA alkaline batteries is a 1.5 volt primary dry cell battery which deliver lasting performance in your devices.
Alkaline AA Batteries
The AA battery is one of the most used in popular electronics such
as an alarm clock, some toys and children's watches.
Many people don't know that you have to be careful with them
because they are not rechargeable.
The key advantage about these alkaline batteries is that they're
immediately available for purchase when your battery dies out on
you without having to wait weeks or months for delivery.
Alkaline AA batteries are not ideal for regular use in
battery-powered devices. They do, however, have one major advantage
over lithium AAs: they don't lose their power even if you leave
them unused overnight or on a shelf for years at a time.
Is a 1.5 V Battery the Same as AA?
A 1.5-volt battery is the same size as AA batteries, but is rated
for lower voltage to suit a device with a lighter power requirement
such as a flashlight.
Just be sure not to mix the two up—because they're exactly the same battery.
Mixing them together will result in low-voltage operation of electronic devices.
Which is better, AA or AAA batteries?
It depends on what type of device you're powering.
AA batteries are best for low power drain devices such as camera
flashes because they last much longer than AAA batteries.
By contrast, AAA batteries are the better choice for high-power
battery devices such as video game controllers because they provide
a more current and higher voltage.
It should also be noted that many brands offer "hybrid" AAAs, which
provide the advantages of both AAs and AAA, so it's worth
considering these other types too when making your purchasing
decision.

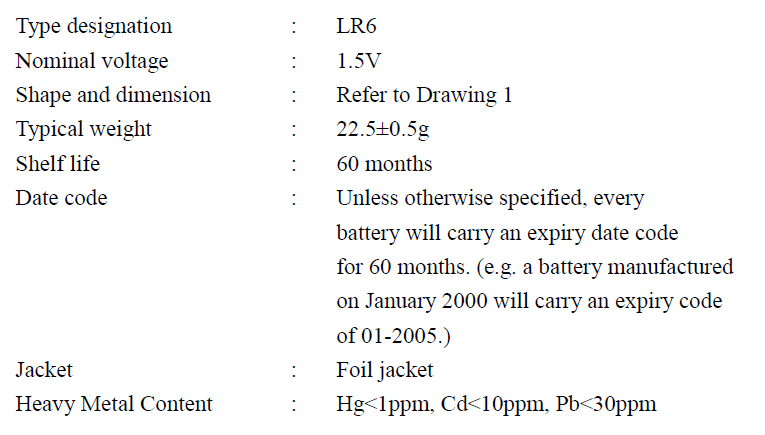

Alkaline battery Lr6 Specifications
Chemical System: Alkaline (Zn/MnO2) battery
IEC Name: LR6 or R6
ANSI/NEDA: 15A (AA)
Average Weight: 22.5+-5g
Dimension(∅ x H): 14.0±0.5 x 50.0 mm
Nominal Voltage: 1.5 V
Alkaline batteries work in devices like:
Toys
Remote controls
Flashlights
Calculators
Clocks and Radios
Portable Electronics
Wireless Mice and Keyboards
Method of sampling : ISO2859 level II single sampling normal
inspection.
Voltmeter : Digital Voltmeter with the precision of 1mV
(internal resistance not less than 1 Megohm)
Test temperature : 20 ± 2°C
AA battery R6 alkaline dry cell 1.5Volt battery drwaing
Alkaline batteries Advantage:
Long-lasting and stable power output
0% Mercury, eco-friendly, reducing potential pollution
High-density structure, providing ultra-high performance and
long-lasting power
Suitable for medium to high power-consuming electronic devices
Up to 5 year Shelf Life
Data sheet for AA LR6 batteries
| Model | LR6 AA |
| Diameter | 13.5-14.5 |
| Height | 49.2-50.5 |
| Norminal voltage | 1.5 volt |
| Test condition/discharge time | 10Ω, 24h/d, 0.9V / 19.1H |
| 3.9Ω, 24h/d, 0.9V / 6.4H | |
| Storage time | more than 5 years |
| LOGO | OEM |
| Package | Welcome OEM customer logo too |
| Battery pack | any combinations welcome customized |

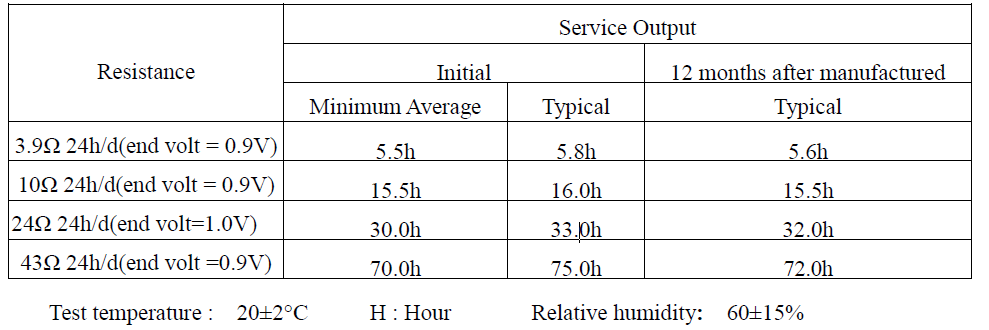

Continuous discharge

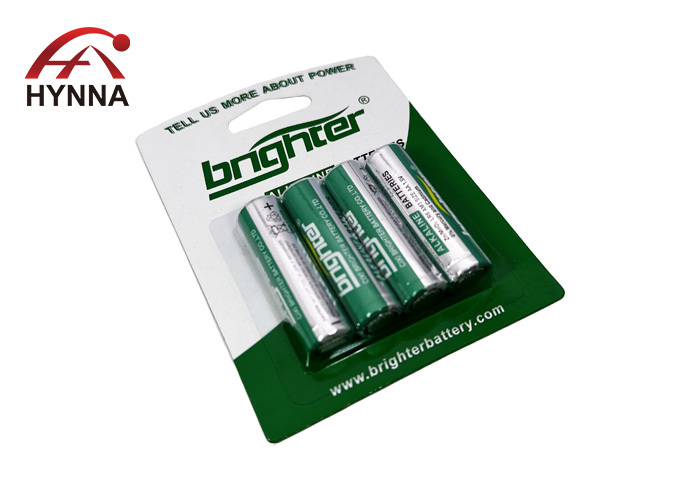

AA battery packing information LR6
| Type | Blister packing | Shrink packing | ||||||||
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W | |
| LR6/ AA/ 1.5v | 4B/card | 20 cards | 160 cards | 391*303*193mm | 16.6 kgs | 4S/shrink | 40 pcs | 720 pcs | 311*198*182 mm | 17.2 kgs |
| 2S/shrink | 40 pcs | 720 pcs | 311*198*182 mm | 17.2 kgs | ||||||
Hot sale Alkaline batteries from Hynna
Primary cell
| Model | Diameter mm | Height mm | Norminal Voltage V | Test condition | Discharge |
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/七号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h | ||||
| LR6/AA/五号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h | ||||
| LR14/C/二号 | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h | ||||
| LR20/D/大号 | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h | ||||
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
| 270Ω, 1h/d, 5.4V | 1150min | ||||
Rechargeable type
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| HR03/AAA/7号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
| HR6/AA/5号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
Attentions:
1) Batteries should be placed in a cool place before use
2) Please install the battery according to the positive and negative (+/-) polarity instructions of the electronic product.
3) Never mix different brands, different types or old and new batteries
4) Never charge, disassemble, damage or dispose of battery in fire
5) Never connect the positive and negative (+/-) terminals of the same battery
6) Never put unpackaged batteries in your pocket
7) If you do not use electronic products for a long time, please remove the batteries
8) Never swallow batteries
9) Batteries are not toys, please do not let children touch or use them
|
|
