Alkaline Battery C size battery AM2 LR14 1.5V battery LR14 size C batteries OEM
LR14 is Alkaline Zinc-Manganese Battery
Chemical system:Zn-MnO2(KOH), without Hg&Cr
Nominal Voltage:1.5V
Designation : IEC:LR14 ANSI: C JIS:AM-2 Others: E93
Battery type LR14 C 1.5V
Diamter 24.9~26.2 mm
Height 48.6~50.0 mm
Weight 0.0682 kg
Capacity 7500mah Testing condition 10mA, 24h/d, 20°c,e.v.=0.8V
Alkaline Cylindrical Battery 0% Mercury Alkaline Cylindrical
Battery Series LR14 battery 1.5 volt batteries
0% Mercury Lead & Cadmium Added
C Cell Alkaline All-Purpose Batteries 1.5 Volt 5-Year Shelf Life
battery for your daily life
About C battery item LR14
Can be send out with bulk or blister card depends on your needed
1.5V C cell alkaline batteries, providing long-lasting reliable
power
Ideal for a variety of everyday devices, including toys, clocks,
flashlights, and more
Improved design offers a 5-year leak-free shelf life; store for
emergencies or use right away
Note: these batteries are NOT rechargeable.
Type: LR14
Size: C
Voltage: 1.5 V
Off Load Voltage
| At shipping | 12 months after manufactured |
| 1.58-1.65V | Above 1.50V |
On Load Voltage
| Initial | 12 months after manufactured |
| Above 1.35V | Above 1.30V |
Load resistance: 5 ohm ± 0.5% (measure time : 0.3 seconds)
LR14 Signs
The following signs are on the battery body:
1. Model:LR14/C
2. Manufacturer and brand
3. Battery Poles:“+”and“-”
4. Expiry date or manufacturing date
C battery package
| Type | Blister packing | Shrink packing | ||||||||
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W | |
| LR14/ C / 1.5v | 2B/card | 12 cards | 96 cards | 397*304*193mm | 14.8 kgs | 2S/shrink | 24 pcs | 192 pcs | 337*235*136 mm | 13.7 kgs |

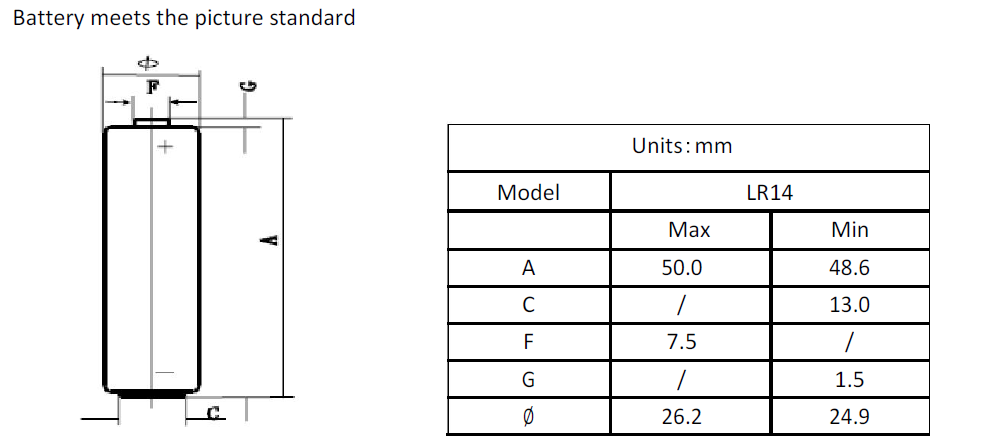

Data sheet for LR14 batteries C battery 1.5 volt
| Model | LR14 C |
| Diameter | 24.9-26.2 |
| Height | 48.6-50.0 |
| Norminal voltage | 1.5 volt |
| Test condition/discharge time | 3.9Ω, 24h/d, 0.8V / 20H |
| 6.8Ω, 1h/d, 0.9V / 39H | |
| Storage time | more than 5 years |
| LOGO | OEM |
| Package | Welcome OEM customer logo too |
| Battery pack | any combinations welcome customized |
Hot sale Alkaline batteries from Hynna
Alkaline Primary cell
| Model | Diameter mm | Height mm | Norminal Voltage V | Test condition | Discharge |
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/七号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h | ||||
| LR6/AA/五号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h | ||||
| LR14/C/二号 | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h | ||||
| LR20/D/大号 | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h | ||||
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
| 270Ω, 1h/d, 5.4V | 1150min | ||||
Rechargeable Alkaline batteries
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| HR03/AAA/7号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
| HR6/AA/5号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
Alkalline batteries Cautions for using
1. This battery can’t be charged,leakage and explosion may happen when charging.
2. Make sure the battery is in correct position as + and -.
3. Short-circuit,heating,disposing of into fire or disassembling of battery is prohibited.
4. Battery can not be forced discharged, which leads to excess gassing and may result in bulging,leakage and de-crimping of cap.
5. New batteries and used ones can not be used at the same time. It is recommended to use the same brand when replacing batteries.
6. The battery should be taken out from the device which will not be used for a long time.
7. Exhausted battery should be taken out from the device.
8. Welding batteries are prohibited or it will cause damage.
9. The batteries should be kept from children,if swallowed,contact a doctor immediately.
|
|
