Shenzhen Hynna Battery Co.,Ltd.
1 Years
| Ask Lasest Price | |
| Brand Name : | D-Cell Non-Rechargeable Batteries LR20 |
| Model Number : | Idustrial D/LR20 battery |
| Certification : | CE/REACH/Rohs |
| Price : | bargain |
| Payment Terms : | T/T |
| Supply Ability : | 10000000 per month |
| Delivery Time : | 5-10 working days |

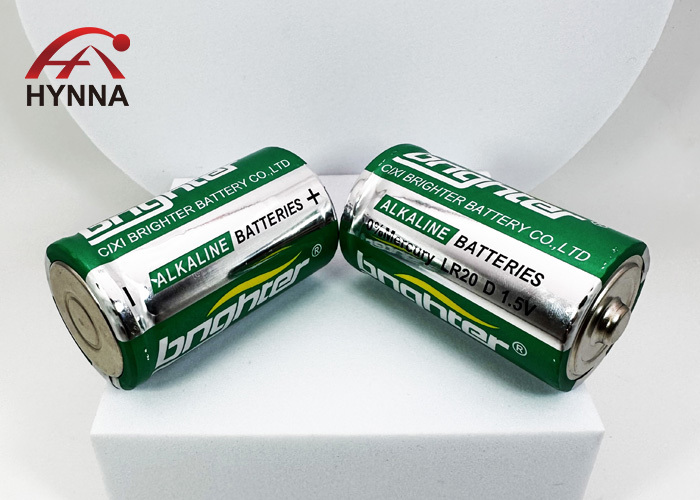

Alkaline LR20 D Primary Batteries 1.5 volt Dry cell battery in size D Alkaline cell
IEC LR20 Alkaline battery Frame size D.
Dimensions (Ø x L mm), 34,2 x 61,5. Weight (g), 135,
Electrochemical System Alkali manganese dioxide.
Alkaline battery size D LR20 dry cell is an alkaline battery that offers you reliable performance and long-lasting power in a broad range of everyday devices.
LR20 alkaline D battery pack gives you great value at an affordable cost.
WARNING for D battery 1.5 volt :
NON RECHARGEABLE BATTERY! CANNOT BE CHARGED! ONE-TIME USE BATTERY.
Risk of fire. Battery can explode or leak and cause injury if
installed backwards, disassembled, charged, crushed or exposed to
fire or high temperature.
Do not put the battery into a charger of any kind.
Cannot be used with other types of batteries together.
LR20 D size battery Alkaline 1.5V cell specification
LR20 batteries is a disposable battery that with 1.5V voltage and 18000mah capacity ,under testing condition 10mA, 24h/d, 20°c,e.v.=0.8V
Type D battery 1.5 volt part number Lr20 battery material Alkaline cell with Diameter 32.3~34.2mm and Height 59.5~61.5 mm
Alkaline battery D weight arround 141 g
| Type | Diameter mm | Height mm | Weight kg | Capacity mah | Testing condition |
| LR20/ D / 1.5v | 32.3~34.2 | 59.5~61.5 | 0.141 | 18000 | 10mA, 24h/d, 20°c,e.v.=0.8V |
1.5 Volt batteries in size D lR20 alkaliine batteries welcome any Customized
can be come with blister card 2pcs per card or 2pcs shrink
Blistcard OEM LOGO or BOx OEM / odm very welcome
We are the factory then provide any customization service for you
| Blister packing | Shrink packing | ||||||||
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W |
| 2B/card | 12 cards | 48cards | 325*203*243mm | 14.8 kgs | 2S/shrink | 12 pcs | 96 pcs | 297*231*158 mm | 14.2 kgs |
Hot sale Alkaline batteries from Hynna
Primary Alkaline battery cell
| Model | Diameter mm | Height mm | Norminal Voltage V | Test condition | Discharge |
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/七号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h | ||||
| LR6/AA/五号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h | ||||
| LR14/C/二号 | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h | ||||
| LR20/D/大号 | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h | ||||
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
| 270Ω, 1h/d, 5.4V | 1150min | ||||
Alkaline Rechargeable battery
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| HR03/AAA/7号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
| HR6/AA/5号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
|
|
