Shenzhen Hynna Battery Co.,Ltd.
1 Years
| Ask Lasest Price | |
| Brand Name : | OEM LR6 battery |
| Model Number : | double A battery LR6 |
| Certification : | CE/REACH/Rohs |
| Price : | bargain |
| Payment Terms : | T/T |
| Supply Ability : | 10000000 per month |
| Delivery Time : | 5-10 working days |

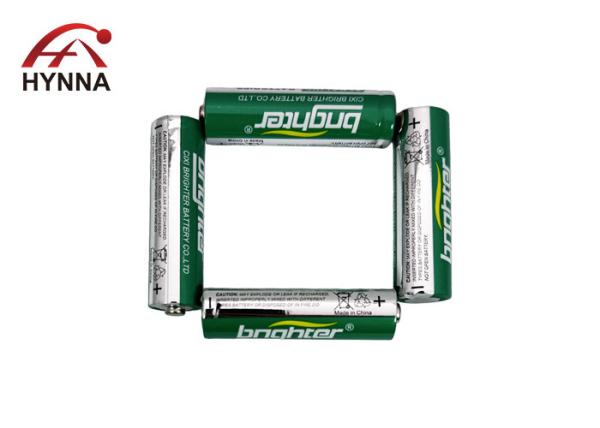

AA sized battery LR6 Alkaline battery 1.5V Alkaline LR6 AA Battery
is a cylindrical dry battery AA
AA alkaline battery:
Chemistry: Alkaline (Zinc-Manganese Dioxide)
Nominal Voltage: 1.5V
Typical Capacity: ~1800–3000 mAh (varies by brand and usage conditions)
Operating Temperature: -18°C to 55°C (0°F to 130°F)
Shelf Life: 5–10 years (depending on storage conditions)
Diameter: ~14.5 mm (0.57 inches)
Height: ~50.5 mm (1.99 inches)
Weight: ~23 g (0.81 oz)
✔ Long shelf life – Retains charge well when not in use.
✔ High energy density – Suitable for high-drain devices (e.g., cameras, toys).
✔ Leak-resistant design – Modern versions have improved seals to prevent leaks.
✔ Non-rechargeable – Single-use (disposable).
Chemical System: Alkaline (Zn/MnO2) battery
IEC Name: LR6 or R6
ANSI/NEDA: 15A (AA)
Average Weight: 22.5+-5g
Dimension(∅ x H): 14.0±0.5 x 50.0 mm
Nominal Voltage: 1.5 V
Method of sampling : ISO2859 level II single sampling normal
inspection.
Voltmeter : Digital Voltmeter with the precision of 1mV
(internal resistance not less than 1 Megohm)
Test temperature : 20 ± 2°C
AA battery R6 alkaline dry cell 1.5Volt battery drwaing
Data sheet for AA LR6 batteries
| Model | LR6 AA |
| Diameter | 13.5-14.5 |
| Height | 49.2-50.5 |
| Norminal voltage | 1.5 volt |
| Test condition/discharge time | 10Ω, 24h/d, 0.9V / 19.1H |
| 3.9Ω, 24h/d, 0.9V / 6.4H | |
| Storage time | more than 5 years |
| LOGO | OEM |
| Package | Welcome OEM customer logo too |
| Battery pack | any combinations welcome customized |
Continuous discharge
AA battery packing information LR6
| Type | Blister packing | Shrink packing | ||||||||
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W | |
| LR6/ AA/ 1.5v | 4B/card | 20 cards | 160 cards | 391*303*193mm | 16.6 kgs | 4S/shrink | 40 pcs | 720 pcs | 311*198*182 mm | 17.2 kgs |
| 2S/shrink | 40 pcs | 720 pcs | 311*198*182 mm | 17.2 kgs | ||||||
Hot sale Alkaline batteries from Hynna
Primary cell
| Model | Diameter mm | Height mm | Norminal Voltage V | Test condition | Discharge |
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/七号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h | ||||
| LR6/AA/五号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h | ||||
| LR14/C/二号 | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h | ||||
| LR20/D/大号 | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h | ||||
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
| 270Ω, 1h/d, 5.4V | 1150min | ||||
Rechargeable type
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| HR03/AAA/7号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
| HR6/AA/5号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
Attentions:
1) Batteries should be placed in a cool place before use
2) Please install the battery according to the positive and negative (+/-) polarity instructions of the electronic product.
3) Never mix different brands, different types or old and new batteries
4) Never charge, disassemble, damage or dispose of battery in fire
5) Never connect the positive and negative (+/-) terminals of the same battery
6) Never put unpackaged batteries in your pocket
7) If you do not use electronic products for a long time, please remove the batteries
8) Never swallow batteries
9) Batteries are not toys, please do not let children touch or use them
|
|
